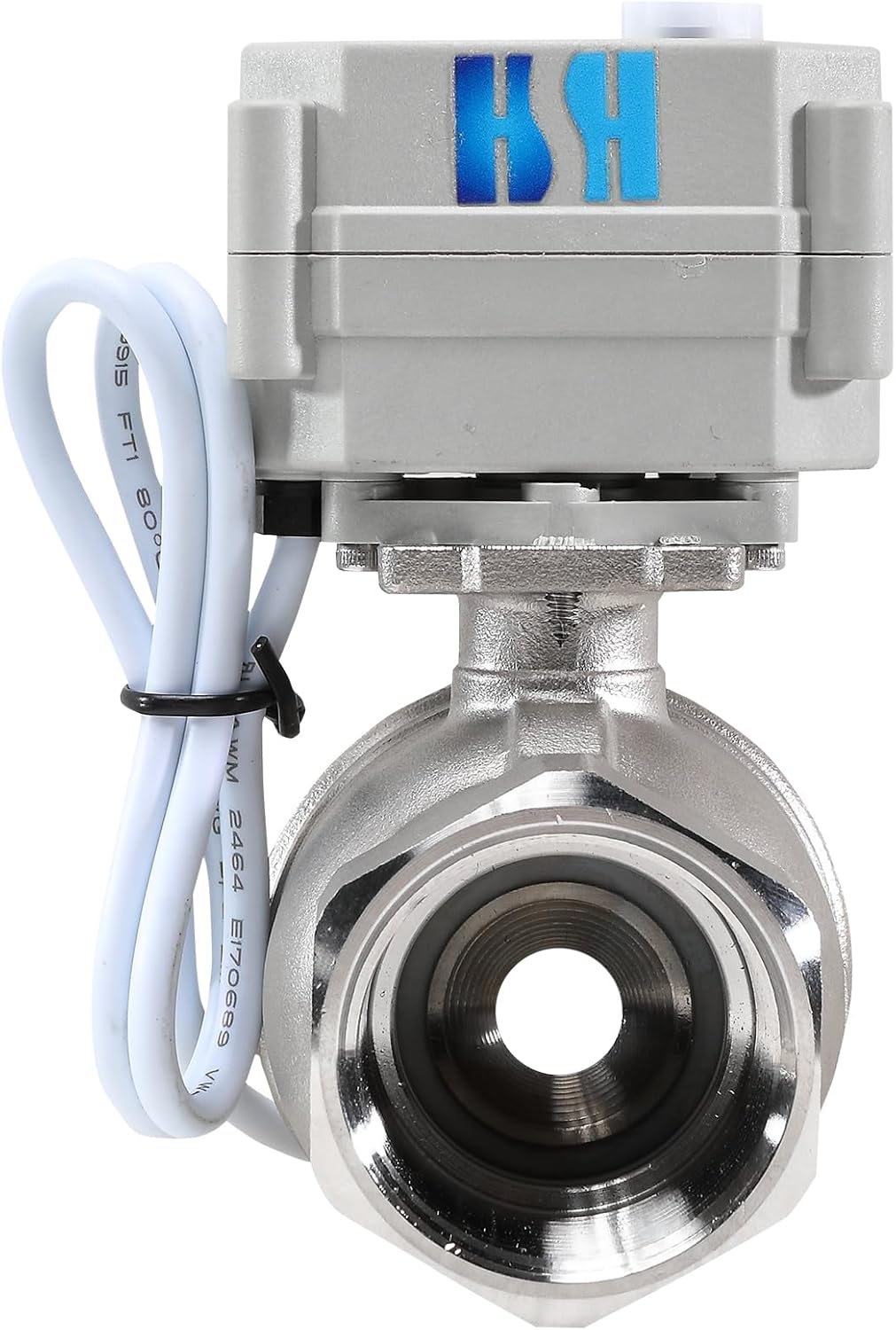

1-1/4" DN32 NPT 2 Way 12VDC 24VAC 24VDC Stainless Steel 304 Normally Closed 2 Wires Electrical Motorized Ball Valve

Technical Parameters:◎Valve Body Diameter: 1-1/4 inch NPT;◎Valve Body Material: Stainless Steel 304;◎Actuator Material: Engineering Plastics;◎Sealing Material: FKM and PTFE;◎Wiring Diagram: CR202-B (2 Wires With Auto Return When Power Off);◎Working Voltage: AC/DC9-24V;◎Working Current: ≤500 mA;◎Working Medium: Fluid, Air;◎Working Pressure: Max 145 Psi;◎Switching Time: ≤7 sec.;◎Life Time: 70000 times (Testing pressure is 0.4MPa, medium is water)◎Actuator Rotation Angle: 90°;◎Torque Force: 3 N.m.;◎Cable Length: 0.5m;◎Environment Temperature: -15℃ ~ 50℃;◎Liquide Temperature: 2℃ ~ 90℃;◎Switch Indicator: YES◎Manual Override: YES;◎Protection Class: IP67Application:◎HVAC;◎Water Treatment;◎Chemical Process;◎Air Compressor Drainage;◎Automatic Control System;◎Solar Hot Water Engineering;◎Watering Flowers, Regular Humidification;◎Air Conditioning Automatically Humidifies;◎Automatic Control Of Small Industrial Equipment;◎Environmental Protection, Efficient Water-saving;◎Replace Solenoid Valve (Especially when solenoid valve cannot work reliably);Manual Override Instructions:◎In case of anelectric supply failure, it is possible to operate the actuator manually.◎Power must in off position when start the manual override.◎Gently putt up the knob about 3mm, then revolve the knob around left and right to control the valve open or close.◎When the red needle in the indicator pointing to "S", means the valve is closed; When pointing to "O", means the valve is open.◎After finish the manual override operation, must press down the knob, so that for the normal electric operation.

• ◎2 Way 1-1/4" NPT Full Bore 32mm Stainless Steel Lead Free Valve Body, Suitable For Portable Water;
• ◎Wide Range Working Voltage Design, Will Working At Voltage From 9-24VAC And 9-36VDC, Including 12VDC 24VDC 24VAC;
• ◎Limit Switches Built-In, Auto Cut Off Current When Arrived At Place(0Ma When Fully Open or Fully Closed),Saving And Long Life;
• ◎Only Connecting 2 Wires(Red/Black) To The Power Supply Then The Valve Can Be Opened, Normally Closed Design(Built-In Capacitor Return), Will Return To Original Position When Power Off/Power Failed;
