Geomembrane Welding Machine, Hot Wedge Welding Machine HDPE Sheet Plastic Liner Welder PVC Film Sealing Machine Plastic Layer Sealing Tool for Sealing Welding PVC EVA PE HDPE

--Parameters:●Frequency: 50/60Hz●Power: 800W(110V)/1100W(220V)●Welding speed: 0.5-5m/min●Heating temperature: 50-450℃●Thickness of material to be welded: 0.2mm-1.5mm●Overlap width: 10cm●Welding width: 12.5mm×2, interior cavity 12mm●Seam strength: ≥85% base material --Packing List●Geomembrane hot wedge welder ●Other necessary accessories●User Manual--Use Procedures:●The joystick is leveled to separate the upper and lower pressure rollers to prevent the pressure roller from idling and damaging the machine after starting the machine.●Turn on the power and turn on the power switch.●Set the temperature first. for materials above 1mm, the temperature is adjusted to about 350 degrees. when the indicator light on the control box is red, it is heating.●Adjust the welding speed according to the thickness of the material. according to the normal 1mm material, the speed is adjusted to about 2.5m.●When the red light of the control box turns to green, put the materials in from the left and right sides of the machine, and the joystick is driven from bottom to top, and it is 90 degrees to the ground.●Adjust the speed according to the welding effect, the temperature is high and the speed is fast, on the contrary, the temperature is low and the speed is slow (try not to adjust the speed and temperature in the middle, set the temperature first when turning on, if the material is thinner or the first-time operation, set the temperature lower when turning on)●After the welding is completed, immediately level the joystick to separate the upper and lower pressure wheels (to prevent the pressure roller from being burned by high temperature), then adjust the temperature speed to the lowest, and finally shut down and unplug the power supply.

• ★【Geomembrane Welding Machine】: This welding machine is powerful with high welding speed and good welding quality. Can be used to weld various plastic soluble materials, such as PP, PVC, EVA, PE, ABS, etc. Commonly used in anti-seepage applications such as geotextiles, waterproof boards, drainage boards, etc.
• ★【Intelligent Control Box】: Automatic climbing welding. Feedback type intelligent control setup, realizes 50-450°C temperature precise control and provide longer service life. Fine-tuning can also be performed according to the thickness of the membrane material to achieve the perfect effect.
• ★【High-quality Pressure Wheels】: Silicone pressure wheel has good elasticity, which are adapt to high temperatures and have smooth and firm welding results. Suitable for welding 0.2~1.5mm materials.
• ★【Supporting Heating Setup】: This machine is equipped with a special copper series double-rail wedge-shaped knife and a high-power heating tube. This heating setup allows for faster, more efficient heating and a longer service life.

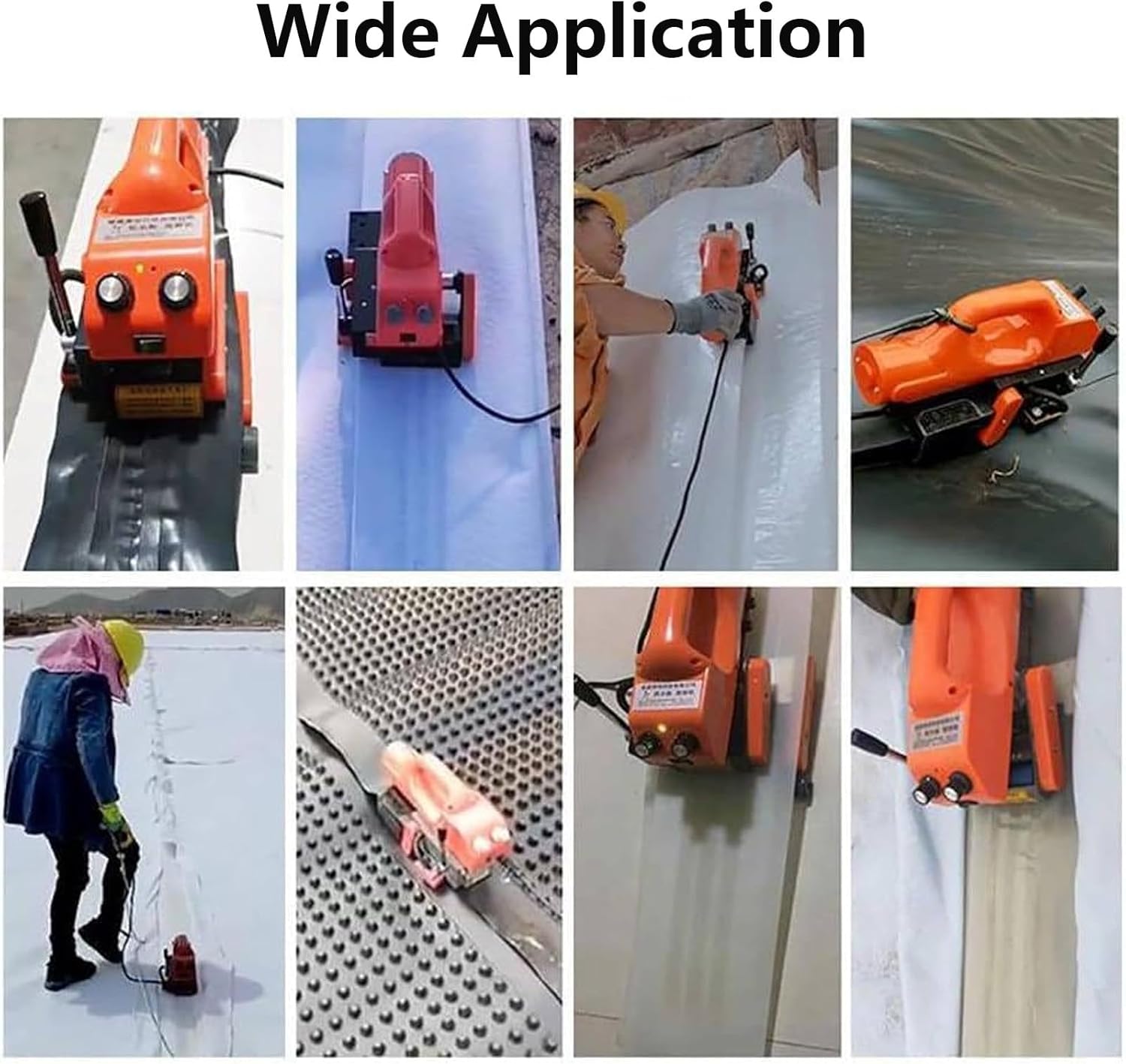

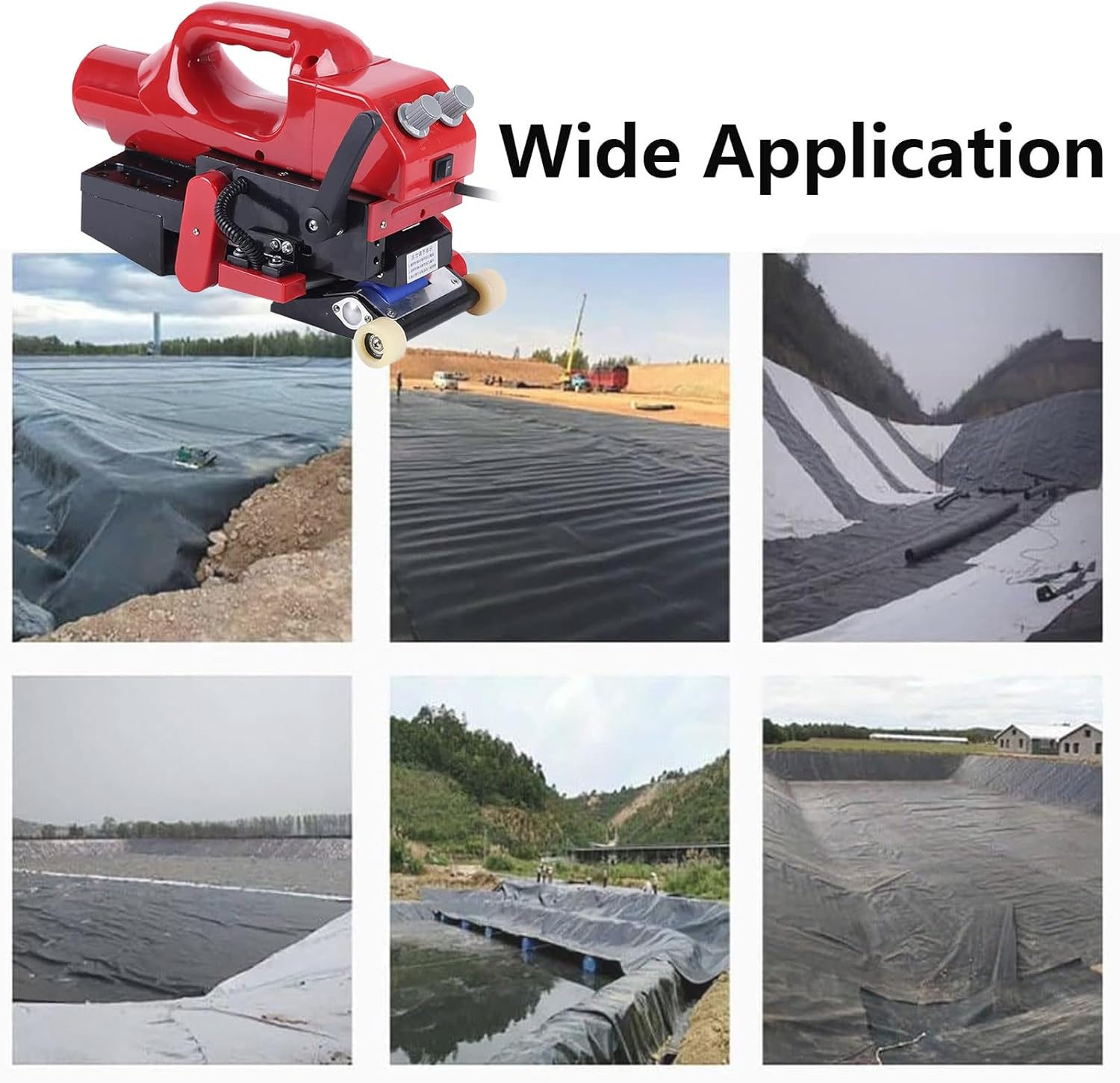

• ★【Wide Applications】: This automatic climbing welder machine is suitable for various fields such as water conservancy, aquaculture, landfills, sewage treatment, etc. Also for anti-seepage construction in tunnels, underground structures, embankments, water plants, landscaping, roofs, etc.
